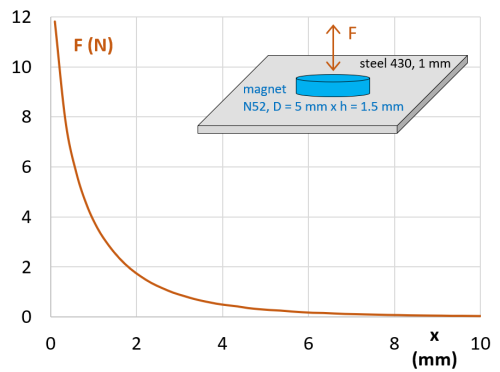

Attraction force between a cylindrical (disc) neodymium NdFeB permanent magnet N52 D5mm x h1.5mm, as calculated by FEM. The base plate is magnetic stainless steel 430, 1 mm thick.
 The results were generated with the software Finite Element Method Magnetics created by Dr David Meeker. |
